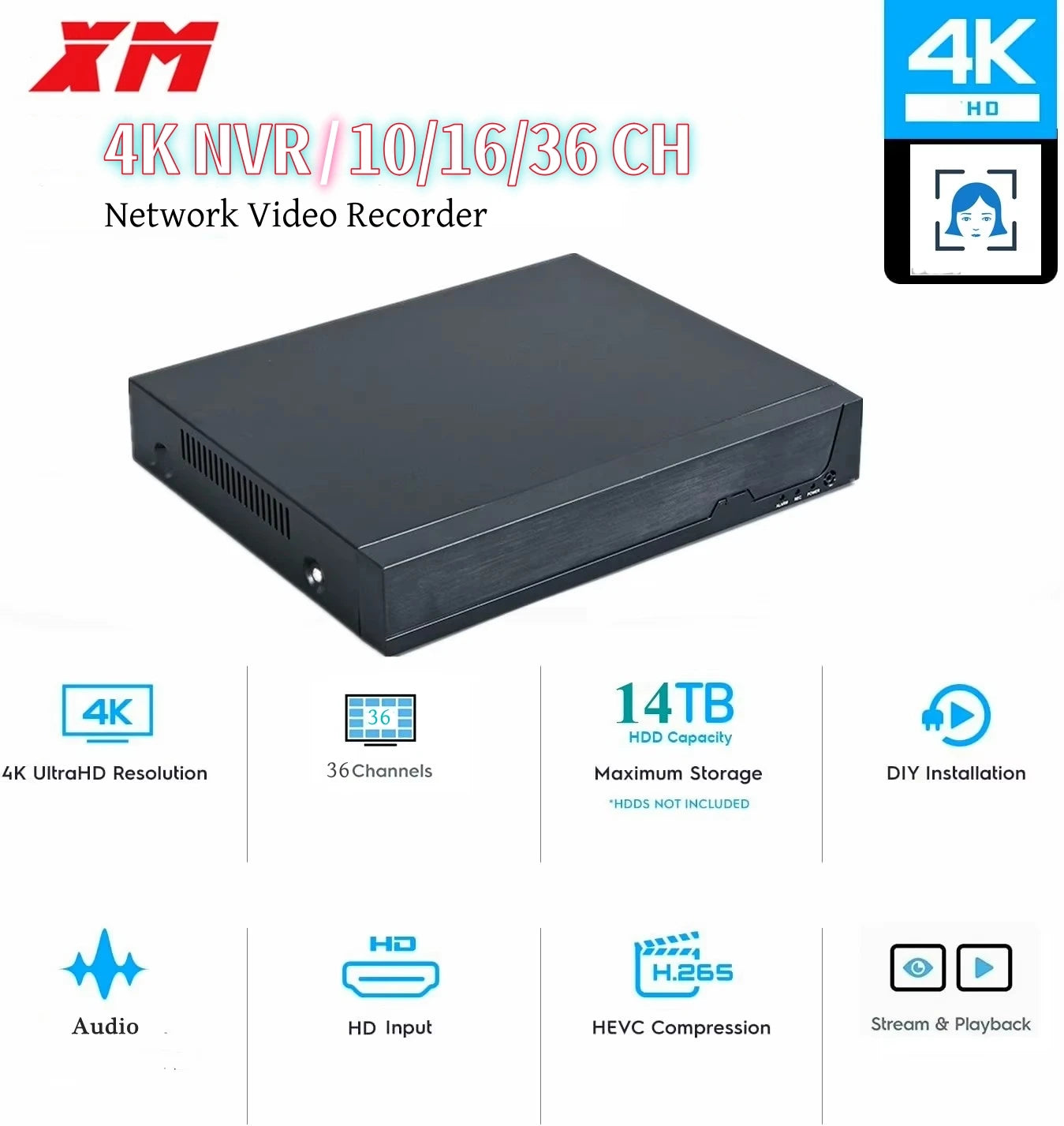

XM 4K H.265 10CH 16CH 36CH CCTV NVR for 8MP/5MP/4MP/3MP/2MP IP Camera metal network video recorder P2P for cctv system
XM 4K H.265 10CH 16CH 36CH CCTV NVR for 8MP/5MP/4MP/3MP/2MP IP Camera metal network video recorder P2P for cctv system
Couldn't load pickup availability
SPECIFICATIONS
Alarm Action: FTP Photo,Email Photo,Local Alarm
Audio Compression Format: G711A
Audio Input: No
Audio Output: None
Backup Type: Hard Drive
Brand Name: XM
Case: Metal+Plastic
Certification: CE,FCC,RoHS
Communication Interface: None
Compression Format: H.265,H.264
Display quality: 9CH/16CH/32CH 4K
Face Identification: Support with Face Detection IP Camera
HDD: 1* SATA(Up to 14TB for each disk)
Hard Drive Size: 3.5''
Hard drive Interface Type: SATA
Hign-concerned Chemical: None
IP Mode: Dynamic IP address,Static IP address
Main processor: XM/Mstar/Nova
Model Number: XM-N80X09-S
Network Interface: RJ45 10/100M
Network Protocol: DHCP,DNS,DDNS,FTP
POE: None
Playback quality: 4K
Supported Mobile Systems: iPhone OS,Android
Supported Operating Systems: Microsoft Windows 7
Technology: Network
Video Input Interface: RJ45
Video Output: 1VGA + 1HDMI-Compatible
Video Resolution: 6mp,1080p,5MP,3MP,4MP
Video Standard: NTSC,PAL
Wireless Security: wep
e-Cloud(P2P): YES
Multiple alarm detection and notification methods
Support Face Detection,Human Detection,Motion Detection,Camera lens was covered Alarm detection method.
Support Email and APP push notification methods.
8MP/4K Super HD Day & Nigth Vision
XM 8MP ip camera provies crystal-clear images and videos with 3840x2160 HD resolution.An advanced automatic IR-cut filter helps to capture surroundings at night for up to 100ft. You will see all details that happens at your surroundings.
Remote Viewing, Anytime, from Anywhere
No matter where you are, you can remotely access the camera to see live streaming and stay connected. Remotely view the camera via: free XMeye App on your mobile device, free VMS/CMS Client on your computer, IE browsers
Support multi-Languge,Breaking national boundaries
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...
Total 28 languages
10CH 4K Language defult only 13 languages, others should OEM make language firmware.
Orgional Win 10 Style Menu
Advanced H.265+ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 50% of the bit rate at the same quality of coding.
Package Information1 PCS NVR
1 PCS Mouse
1 PCS DC12V Power
1x Quick User Guide
• Tips: You need a HD TV or Monitor with HDMI port to view and do settings on screen, the HDMI cable is not included.
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
||

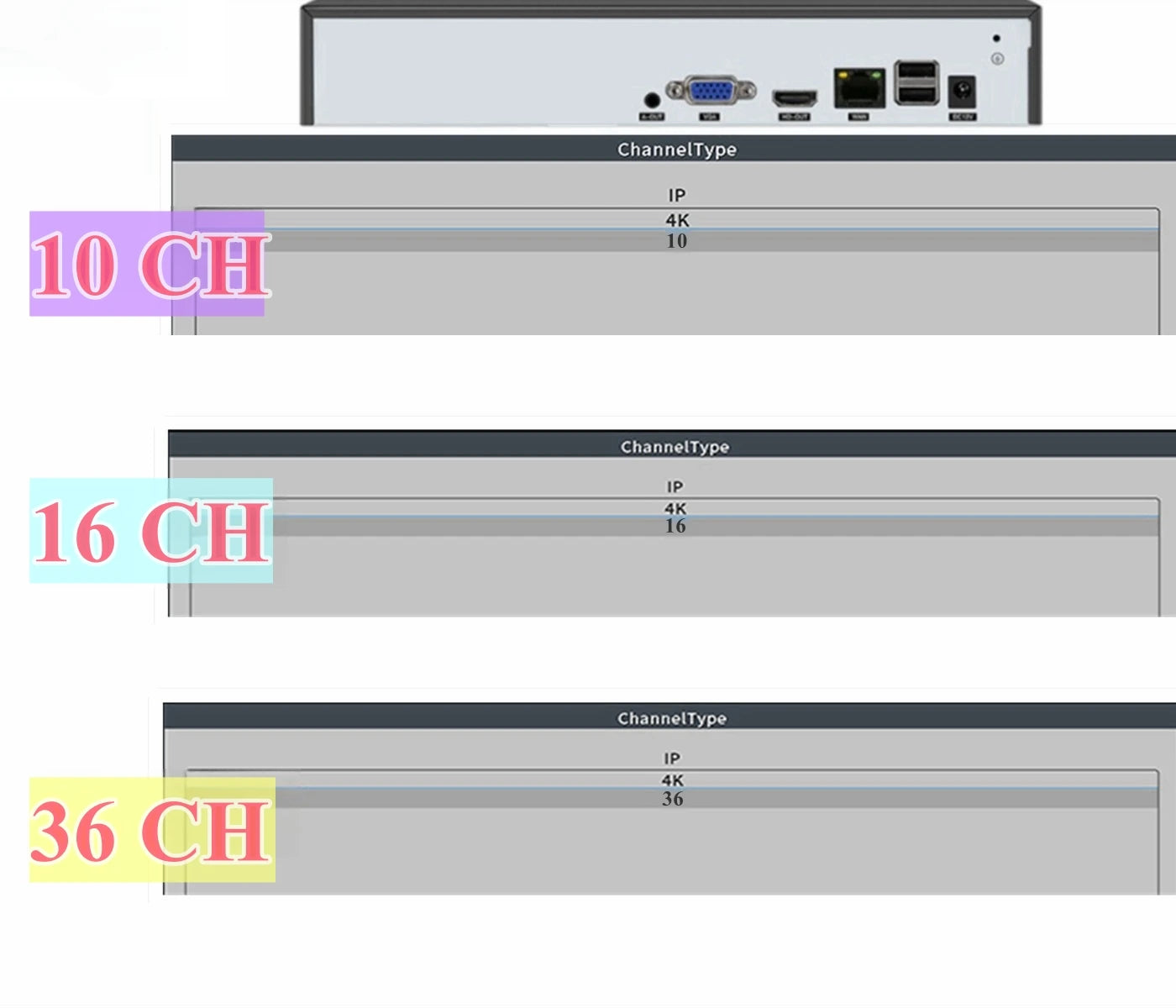

Description of applicable cameras
10CH XM Chip Support Max IP 4K/8MP
16CH MST Chip Support Max IP 4K/8MP
36CH nova Chip Support Max IP 4K/8MP
|
Model
|
|
36CH |
16CH |
|
10CH |
|
|
|
Chip Brand |
|
NOVA |
Mstar |
|
XM |
|
System
|
Compression
|
Standard H.265+
|
||||
|
OS
|
Embedded Linux
|
|||||
|
video
|
Network Input
|
36CH 4K
|
16CH |
|
10CH 4K |
|
|
Output
|
MAX 3840x2160/2560x1440/1920x1080/1440x900/1280x1024/1024x768 |
|||||
|
Record
|
Record Stream
|
Dual stream recording
|
||||
|
Resolution
|
Max 4K/ 5MP / 4MP / 3MP / 1080P / 960P / 720P
|
|||||
|
Mode
|
Manual, timer, motion, Alarm
|
|||||
|
Playback
|
Simultaneous Playback
|
Max 4K
|
||||
|
Search
|
time / event / tag search
|
|||||
|
Alarm
|
Mode
|
Motion detection
|
||||
|
Triggering
|
Record, e-mail, FTP
|
|||||
|
Network
|
Interface
|
RJ45 10 / 100Mbps times 1
|
||||
|
Protocol
|
PPPoE, DHCP,NTP, SMTP.,etc
|
|||||
|
Web Client
|
Multiple users online
|
|||||
|
Mobile Device
|
|
iPhone, Andriod mobile XMeye APP
|
||||
|
HDD Storage
|
|
SATA times 1, max 14T per HDD (HDD is optional)
|
||||
|
Backup
|
Local Backup
|
U disk, USB mobile HDD
|
||||
|
Network Backup
|
Yes
|
|||||
|
Port
|
RS485
|
No
|
||||
|
USB
|
USB 2.0 times 2
|
|||||
|
Others
|
Power Supply
|
DC12V 2A(include)
|
||||
|
Consumption
|
le 5W ( without HDD )
|
|||||
|

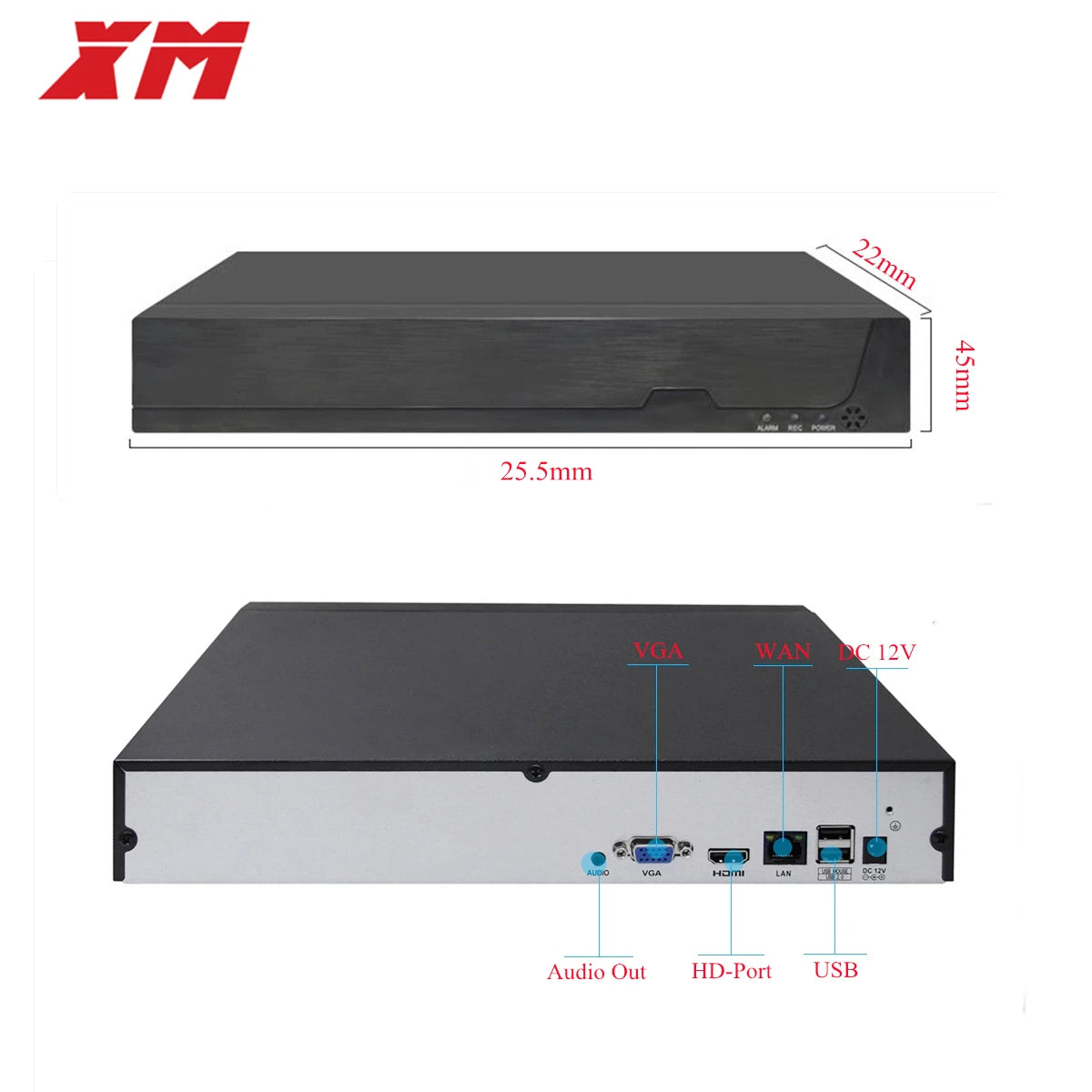

Dimensions(mm
|
260 times 225 times 50 ( W times D times H)
|
|||||
|
Work Environment
|
-10 ～ 50 deg,10% ～ 90% humidity
|
|||||
